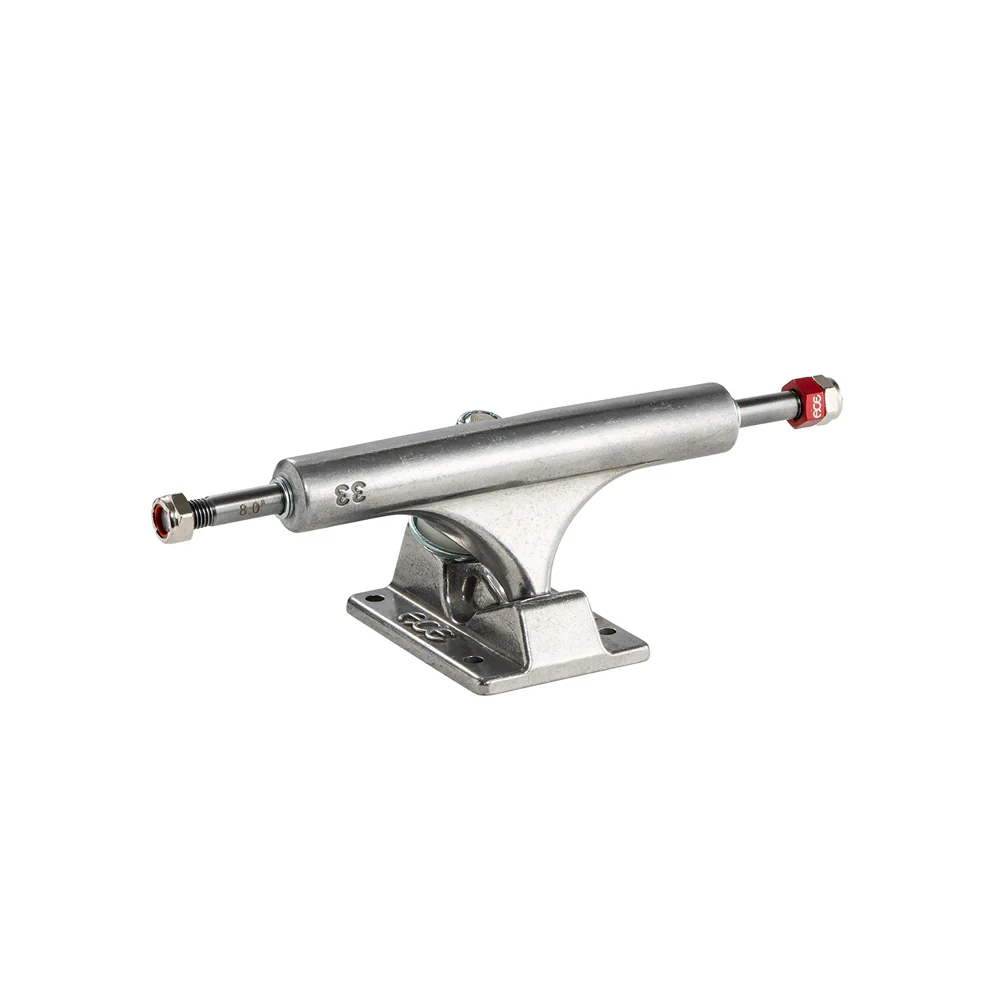

Ace AF1 Polished Skate Truck 33

---

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths. The Ace AF1, tomorrow’s technology today!

Specs:

• Axle width: 8” (203mm)

• Hanger width: 5.4” (137mm)

• Truck height: 2.1” (53mm)

• Fits boards: 7.75” - 8.125”

• Weight: 13.5 oz.

• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method.

• True T6 heat-treated baseplates and hangers.

• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.

• Patent pending rethreading axle nuts - no more damaged axle ends!

• Durable Hand-poured 96a urethane pivot bushings for smooth as silk response.

• Refined bushing and cup washer shapes for a cleaner turn.

• Machine-faced hanger ends for precise bearing contact.
